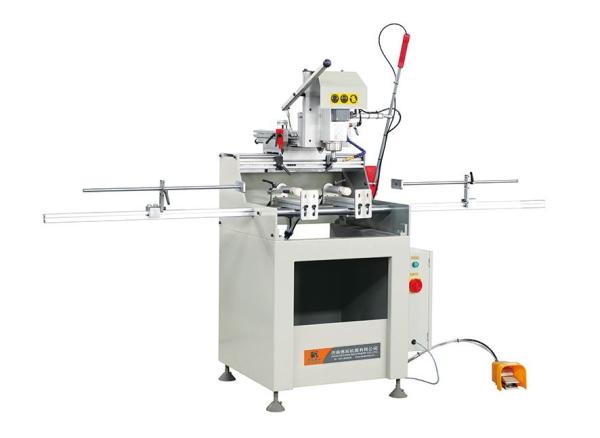

1 It is used for processing several types of hole, grooves and water slots on aluminum and pvc windows and doors or curtain wall.

2 This machine has characteristics of compact structure, smart volume, nice design and the air pressure controls the starting up of the motor..

3 Easy replacement of the copy-routing plate, large useful scope, high efficiency and convenient operation achieve the continuous processing and safety operation.

Parameter :

Air Pressure: 0.5∼0.8(MPa)
Air Consumption:10(L/min)
Input Voltage: 380V/220V 50Hz
Main-shaft Revolution:12000(r/min)
Input Power:2.2(kW)
Cutter Diameter:Ø5 Ø8 (mm)

Copy-routing range: (mm):370×125
Overall Dimension: 2180×1000×1700mm
Weight:230(kg)

GME-TECH has been in business for over 20 years which specialized in the manufacture and supply the window fabricating machinery. Many of our employees including key engineer have been in the company in excess of 25 years. You won’t find that level of experience elsewhere. That quality of accumulated knowledge guarantees the good service and product knowledge. Our advantages include, but not limited to, machinery for PVC window and door, aluminum window and door.
