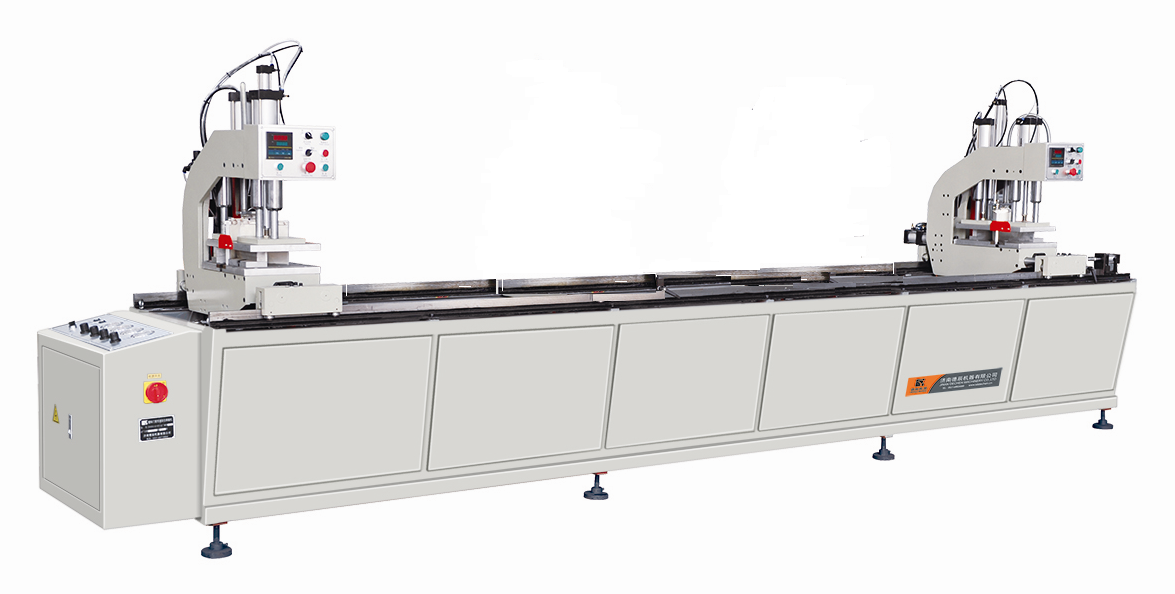

1. Most popular machinery type with 2mm welding.

2. Various angles welding between 30 to 180 degree is available on last machine head.

3. Solid machinery base and structure ensure long life service with high dimension accuracy.

4. profile fixture ordered separately can meet various height profiles' processing requirement

5. Special profile fixture is easy to change, for high corner strength and later good cleaning

6. Each machine head can be working separately or combination.

7. Widely window type application as follows:

8. Optional model: HTW3--120, HTW4--120) for different machinery head. Owning

different machinery welding capacity.

Parameter:

Input Voltage: 1N～50Hz 220V or Customer specification
Input Power: 2.5(kw)
Operation Air Pressure: 0.5～0.8(MPa)
Air Consumption: 150(L/min)
Welding Height: 20---120 (mm)
Max Welding Width: 120 (mm)

Welding range: 400----3500mm
Overall Dimension: 4600×1100×1200(mm)
Machine Weight: 1050(kg)

Main accessory:
• PLC -------Omron
• Solenoid valve------ Germany FESTO
• Cylinder------JPC(FESTO Joint Venture Brand)
• Air Filter Device ----STNC

• Electrical Button and Switcher -----Schneider

• AC Contactor and Circuit Breaker----- Schneider

• Temperature Controller---- Japan Omron

DEMO of welding Jig, which makes the better welding result.

GME-TECH has been in business for over 20 years which specialized in the manufacture and supply the window fabricating machinery. Many of our employees including key engineer have been in the company in excess of 25 years. You won’t find that level of experience elsewhere. That quality of accumulated knowledge guarantees the good service and product knowledge. Our advantages include, but not limited to, machinery for PVC window and door, aluminum window and door.
