1. Parameter:Most stable welcomed mature CNC corner cleaning machine.

2. Totally 5 cutters will be automatically cleaning surface, vertical and inside rubber

Gasket groove. No need tool change.

3. Advanced IPC controlled full machinery automatically precise running.

4. Memory for 60 profile data.

5. Two axis moved by call screw shaft.

6. Within 25 seconds finish one corner complete cleaning.

7. Can be linked with horizontal welding machine to become welding & corner cleaning

production line for grand imagine and high efficiency.

8. Friendly operation. Quick learning.

Air Pressure: 0.5～0.8MPa
Air Consumption: 60L/min
Input Voltage: 380V 50Hz or As Customer Specification
Input Power: 2.8Kw

Milling Cutter Revolution: 2800r/min
Profile Height: 30～120mm
Profile Width: 20～120mm
Overall Dimension: 1800×1050×1800mm
Weight: 584kg

Main accessory:

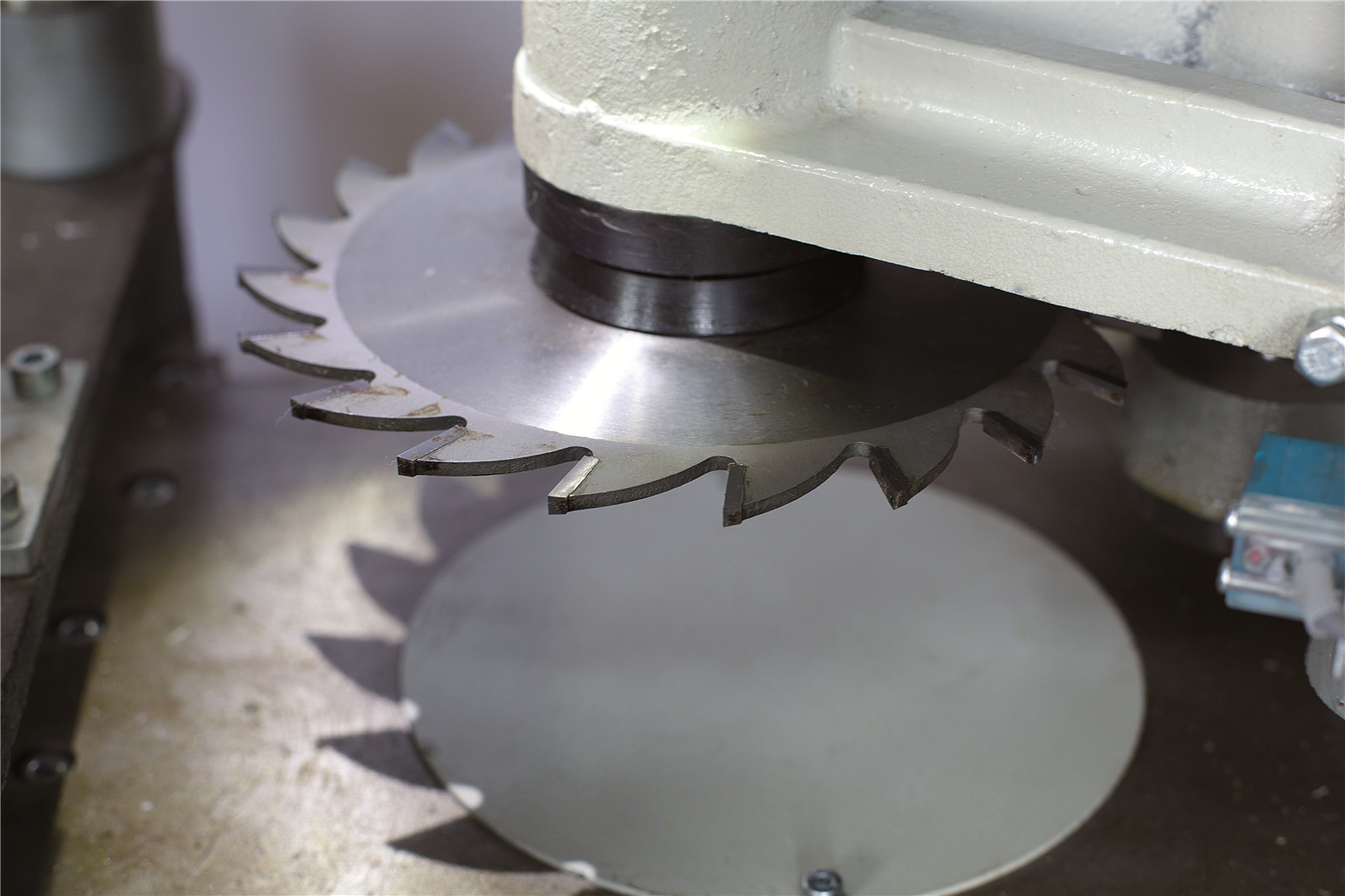

• Saw blade------Japan UNIKEN
• Solenoid valve------ Germany FESTO
• Cylinder------JPC(FESTO Joint Venture Brand)
• Motor----Anhui Sanyang (Best Chinese Motor Brand)
• Air Filter Device ----STNC

• Electrical Button and Switcher -----Schneider

• AC Contactor and Circuit Breaker----- Schneider

• Approach Switcher------ Swiss CONTRINEX or Japan Omron

• Linear bearing system------Linear (South Korean brand)

• Controlling System ---- Japan YASKAWA

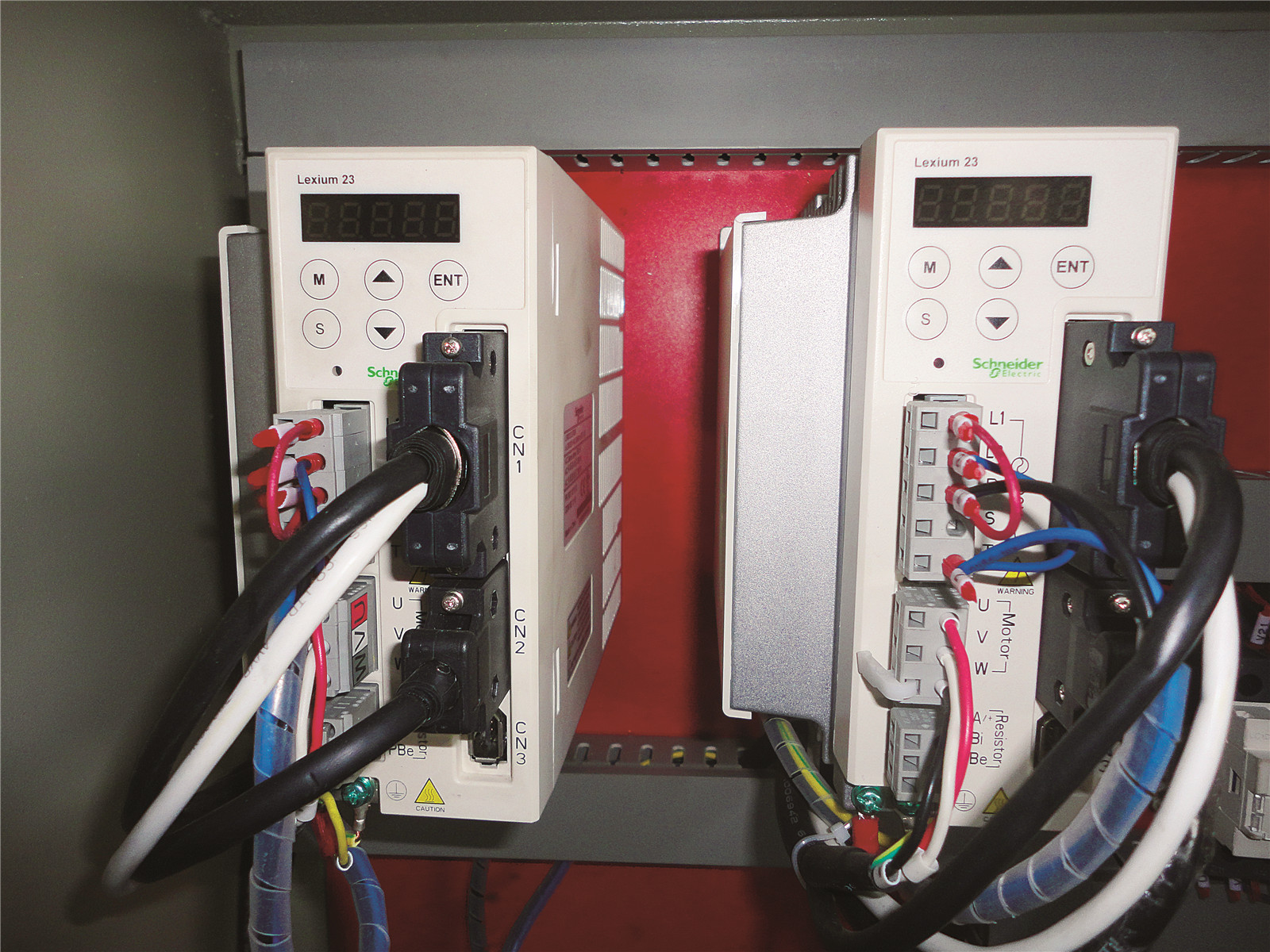

• Servo Driver--------- Japan YASKAWA

• Operation panel-------Taiwan ANC

GME-TECH has been in business for over 20 years which specialized in the manufacture and supply the window fabricating machinery. Many of our employees including key engineer have been in the company in excess of 25 years. You won’t find that level of experience elsewhere. That quality of accumulated knowledge guarantees the good service and product knowledge. Our advantages include, but not limited to, machinery for PVC window and door, aluminum window and door.
